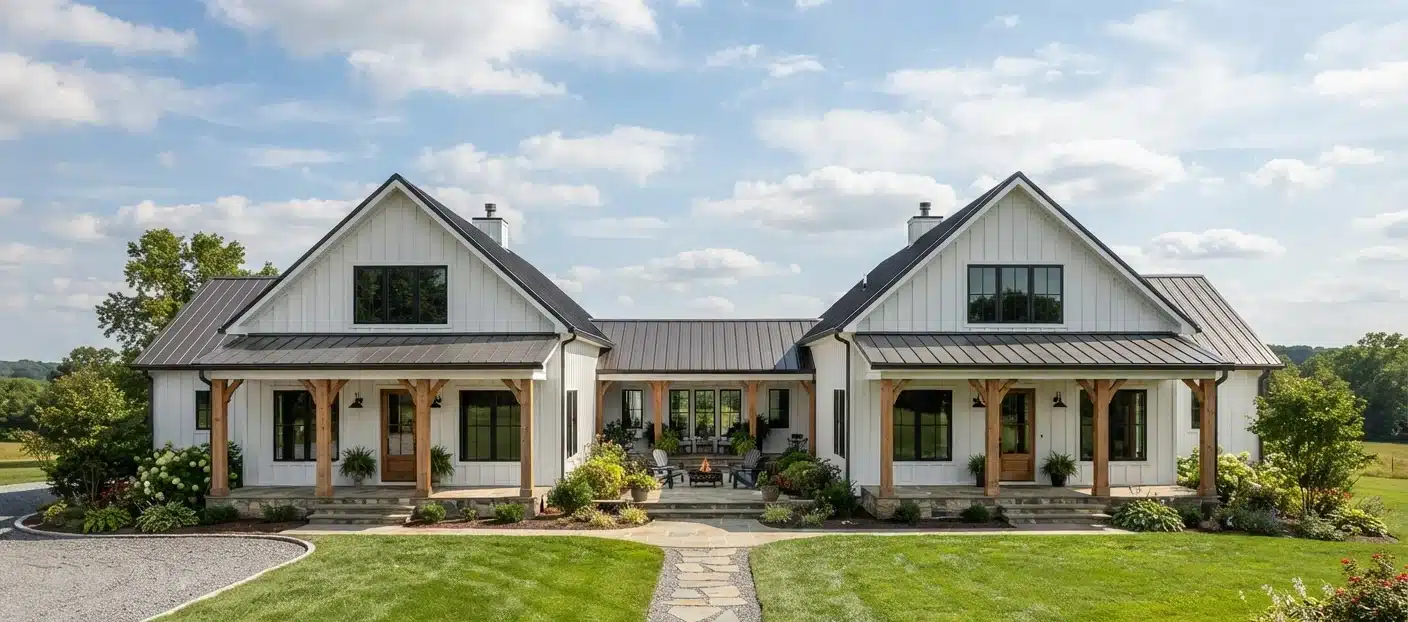

H-shaped barndominium plans separate a house into wings instead of stacking every room into one rectangle. Bedrooms sit in one leg, the garage and utility rooms in the other, and the living space runs across the bar that joins them. H shaped homes are built for one reason above all others — putting distance between the parts of a house that do not belong next to each other — and the plans below show what that buys you and what it costs.
What Makes A Barndominium H-Shaped
An H-shaped plan is two parallel wings joined by a central connecting bar. Look at the roofline from above and you see the letter: two long masses running in the same direction, one shorter mass bridging them, and open ground on both sides of the bridge.
H, U, T and L plans are one family, and it is worth knowing that before you shop. They are all wing plans, and they all solve the same problem in slightly different ways. An L puts one wing off one end. A U runs two wings the same direction off a single bar, open on one side. A T centers one wing on the bar. An H is a U with projections on both sides of the bar rather than one. Designers and plan sites use these labels loosely, and the same building is often filed under two of them depending on whether covered porches are counted as part of the footprint or not.
That last point matters when you are comparing plans. A heated footprint that reads as a U will often read as an H once the covered porches and their roof structure are drawn in, because the porches project off the back of the bar and complete the shape. If the shape itself matters to you — for a courtyard, a view line, or a specific lot — read the roof plan rather than the label.
Why People Build H Shaped House Plans
Zone separation is the whole argument. In a rectangular house, the path from the garage to the kitchen runs past bedroom doors, and the living room shares a wall with somebody trying to sleep. A wing plan ends that. Bedrooms occupy their own leg with a single point of entry. Guests, children, laundry and vehicles stay in their zones. On a large plan this is the difference between a house that functions and a house that is merely big.
Every room gets more exterior wall. A rectangle gives most rooms one outside wall and one window orientation. Narrow wings give nearly every room two or three, which means cross-ventilation, light from more than one direction, and far fewer interior rooms that need artificial light at midday. On a long single-story plan this is the difference you actually feel.
The notch between the wings is sheltered outdoor space you cannot get any other way. Three sides of building block wind and provide privacy, and the space is overlooked from the rooms around it. This is why wing plans almost always put their main porch, courtyard or pool in that pocket — it is the most usable outdoor area on the site, and a rectangular house has no equivalent.
A wing can become a separate residence without building a second structure. Give one leg its own entrance, a small kitchen, a bathroom and a laundry, and you have an in-law suite, an adult child’s apartment, a caretaker’s quarters or a rental — under one roof, one foundation and one set of utilities. Multi-generational buyers are the single largest group asking for these plans, and the wing layout is why.
Orientation gets easier. Because the bar and the wings face different directions, you can aim the main glazing at a view or away from afternoon sun without compromising the bedrooms, and the wings shade the courtyard for part of the day.
The Trade-Offs Of An H-Shaped Floor Plan
These plans cost more per square foot than a rectangle, and it is worth understanding exactly why before you fall in love with one.
More exterior wall for the same floor area. This is the big one. A compact rectangle encloses its square footage with the least possible perimeter; every wing you add increases wall length without adding floor area. More wall means more framing, more sheathing, more siding, more insulation, and a larger surface through which the house loses heat in winter and gains it in summer. Your heating and cooling bills will run higher than a rectangular house of the same size, permanently.
More roof, and more valleys. Where a wing meets the bar you get a roof valley, and valleys are the most leak-prone detail on any roof. Each one needs flashing done correctly and inspected periodically. A simple gable over a rectangle has none. Budget for a better roofer, not a cheaper one.
Longer runs of everything. Plumbing, ductwork, electrical and your own feet. A wing plan spreads the fixtures out, which means more pipe, longer hot-water waits at the far end, and usually more than one HVAC zone to condition the wings evenly. None of that is a dealbreaker; all of it is money.
A wide lot, and more of it. Wing plans spread horizontally by definition. Check the overall width against your setbacks before anything else, and remember the driveway has to reach a garage that may sit at the far end of a leg.
More corners. Every corner is framing labor, a flashing detail and a place for water to find its way in. It is the reason two houses with identical square footage can differ 15 or 20 percent in shell cost.
H-Shaped Barndominium Floor Plans
Five plans, each solving the wing problem differently. They are ordered by how they use the shape rather than by size, because on a wing plan the arrangement matters more than the square footage.
One thing to know before you compare them. The four HB-series plans below publish bedroom and bathroom counts and nothing else — no square footage, no dimensions, no ceiling heights, no roof pitch, no construction type. That is the designer’s listing, not an omission here, and we are not going to estimate figures we cannot verify. Ask for them before you order; it is a reasonable request and they will answer. The Harvest is the one plan in this group with a complete published specification, which is why it carries the most detail.

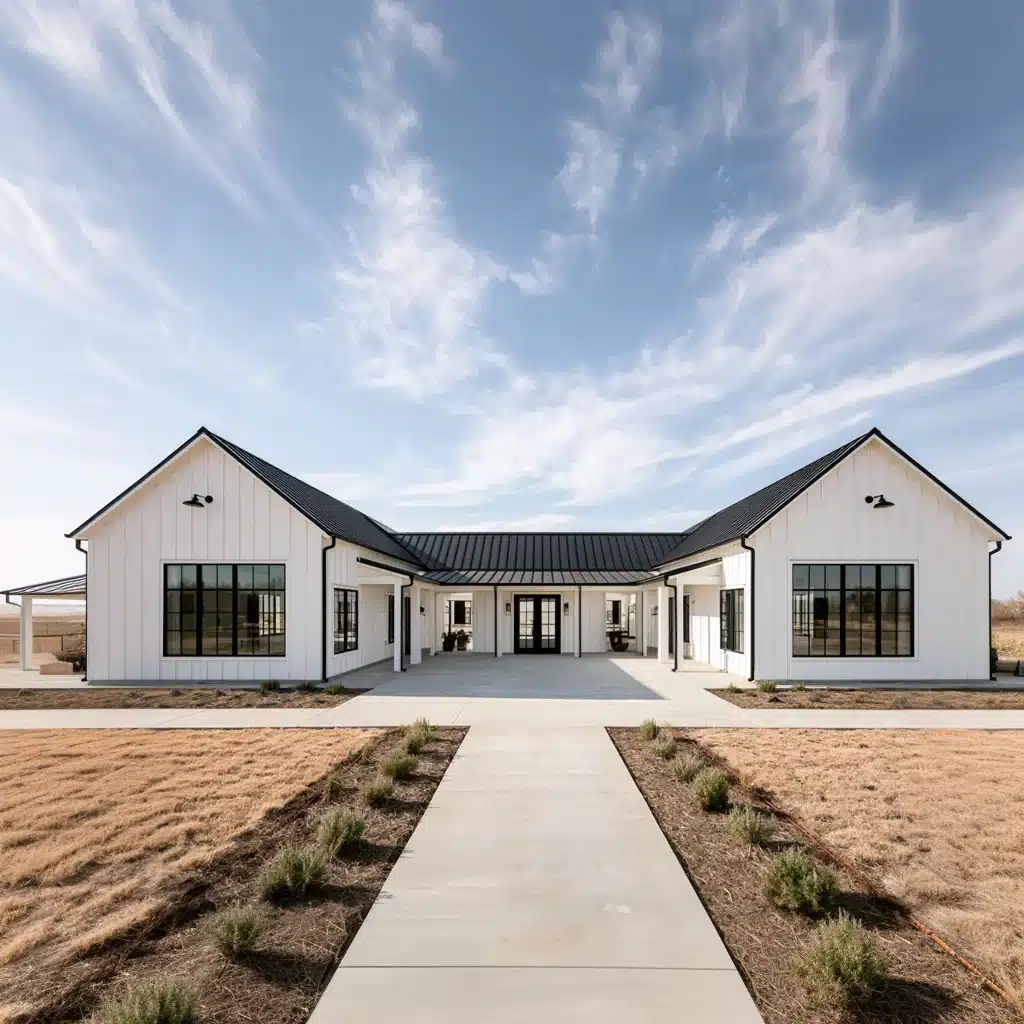

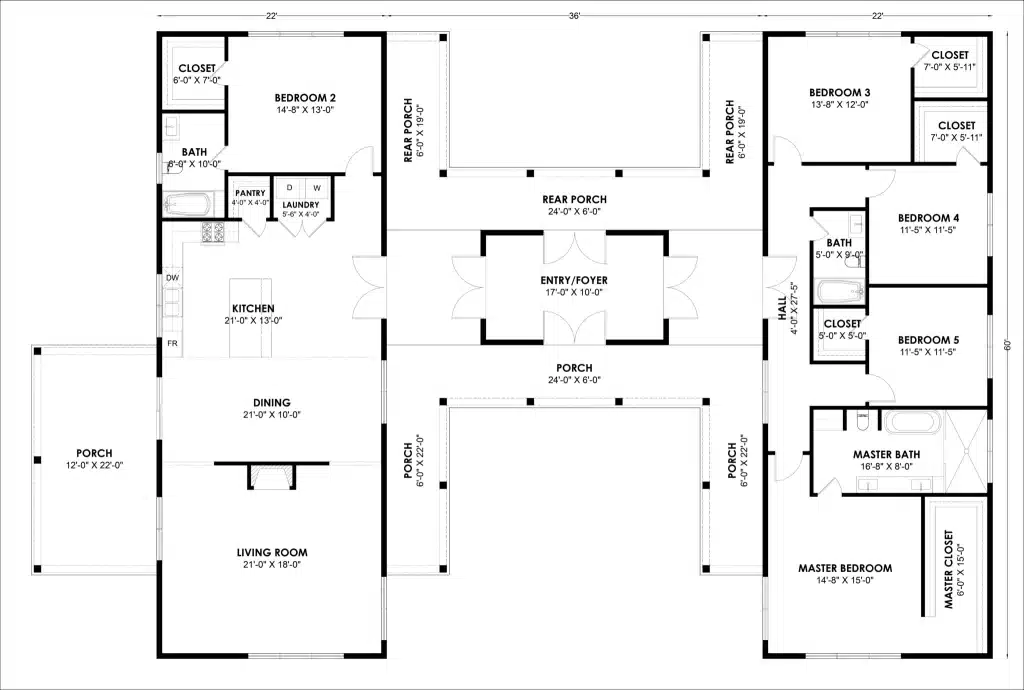

HB-40507 — The Classic H With An Enclosed Central Hub
The HB-40507 is the clearest expression of the shape in this group. The designer calls it an iconic classic H-shape built around a completely enclosed central entry and foyer hub — so the crossbar is not a corridor you pass through but a room you arrive in, with the two wings opening off it.
The left wing holds the living areas, the right wing holds the bedrooms, and the foyer hub is the only connection between them. That is the strictest zone separation of any plan here: five bedrooms and three bathrooms, with the sleeping side genuinely sealed off from the entertaining side. Front and rear covered porches, a side porch, a pantry and a laundry round it out. $1,349.99 as a PDF for a single build; $1,599.99 for five printed sets.

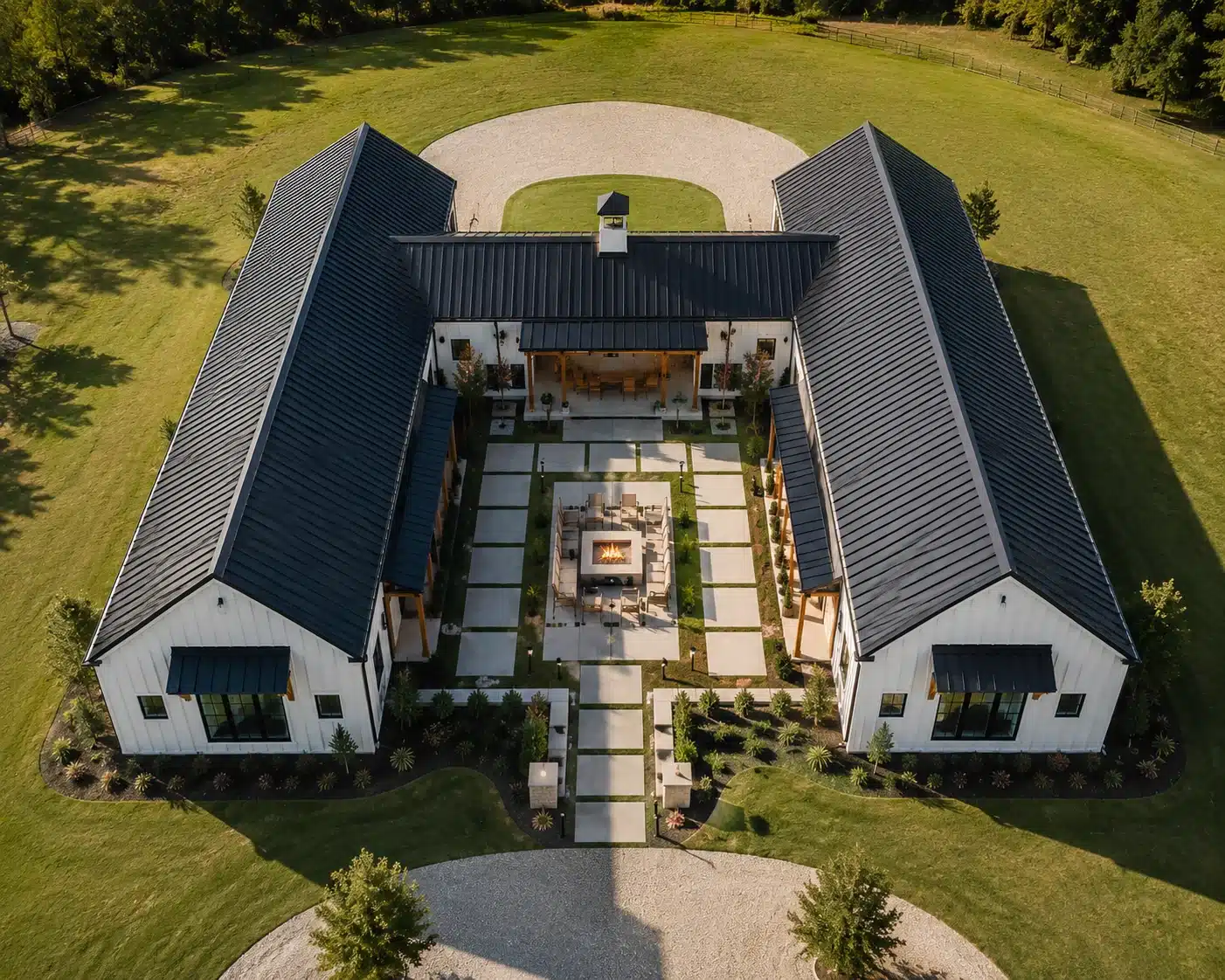

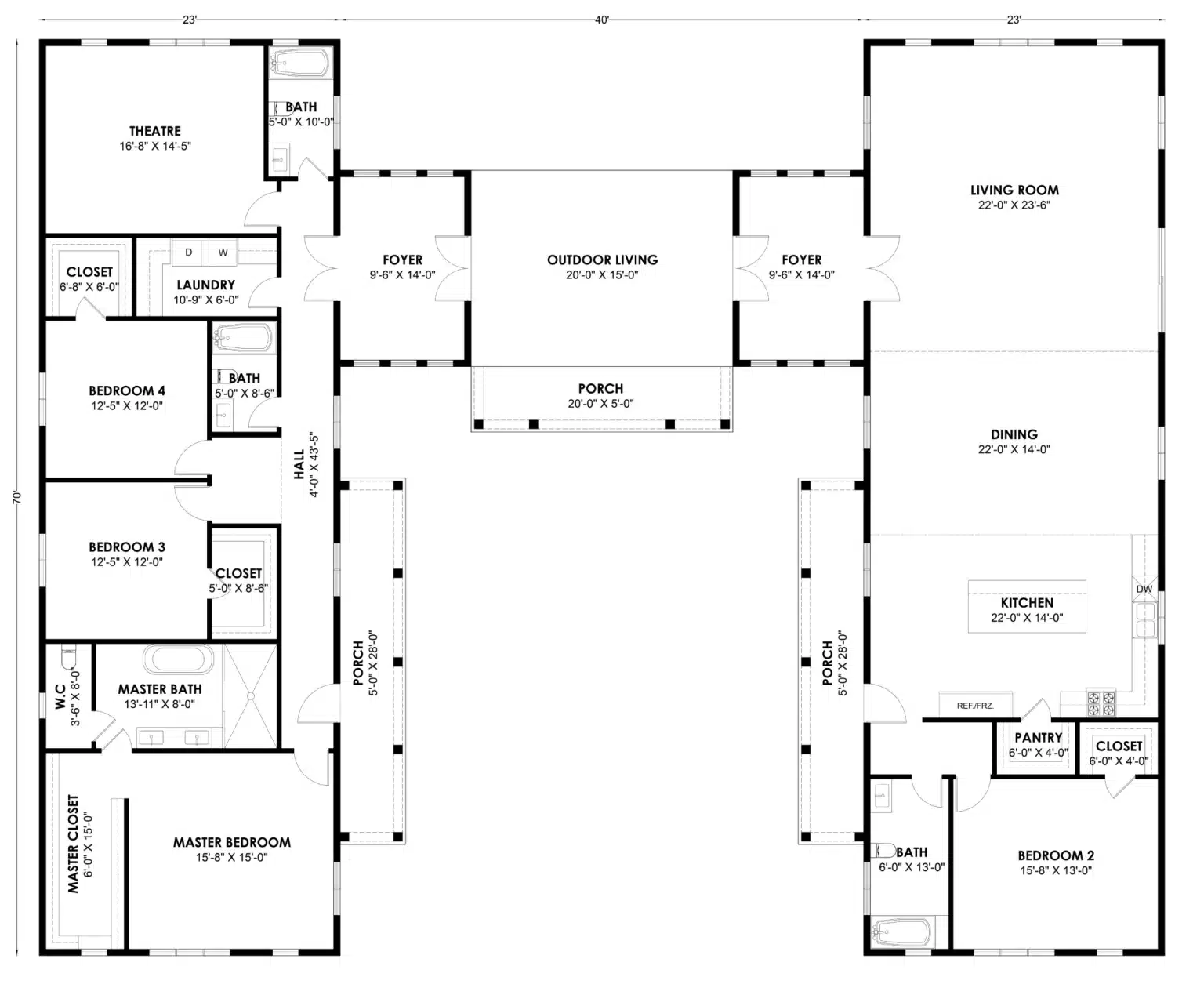

HB-40502 — Living In One Wing, Bedrooms In The Other
The HB-40502 runs a continuous living, dining and kitchen grand hall down the entire right wing — one uninterrupted space rather than an open plan carved out of a rectangle. The left wing houses three bedrooms, with a home theatre in the upper-left wing and an additional ensuite bedroom. Four bedrooms and four bathrooms in total, with a master suite and walk-in closet.
What distinguishes it is the central outdoor patio with covered porch corridors — the notch between the wings is treated as a designed courtyard with sheltered walkways connecting the two sides, rather than as leftover space with a porch on it. If the courtyard is the reason you want an H, this is the plan that commits to it hardest. $1,349.99 PDF; $1,599.99 printed.

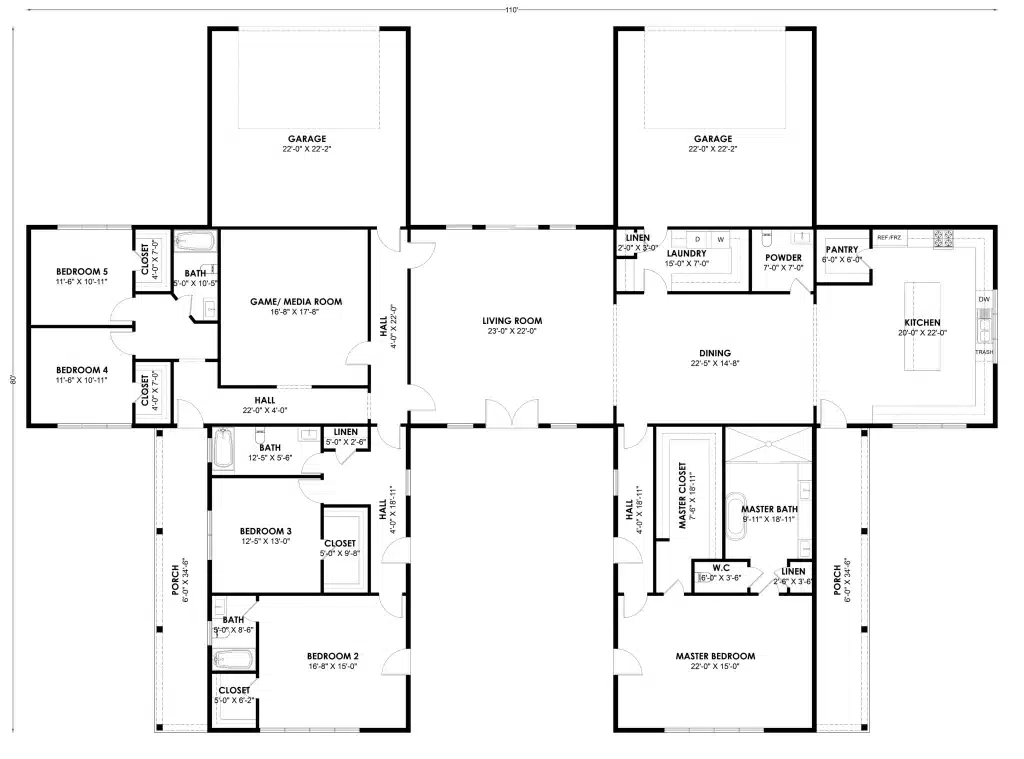

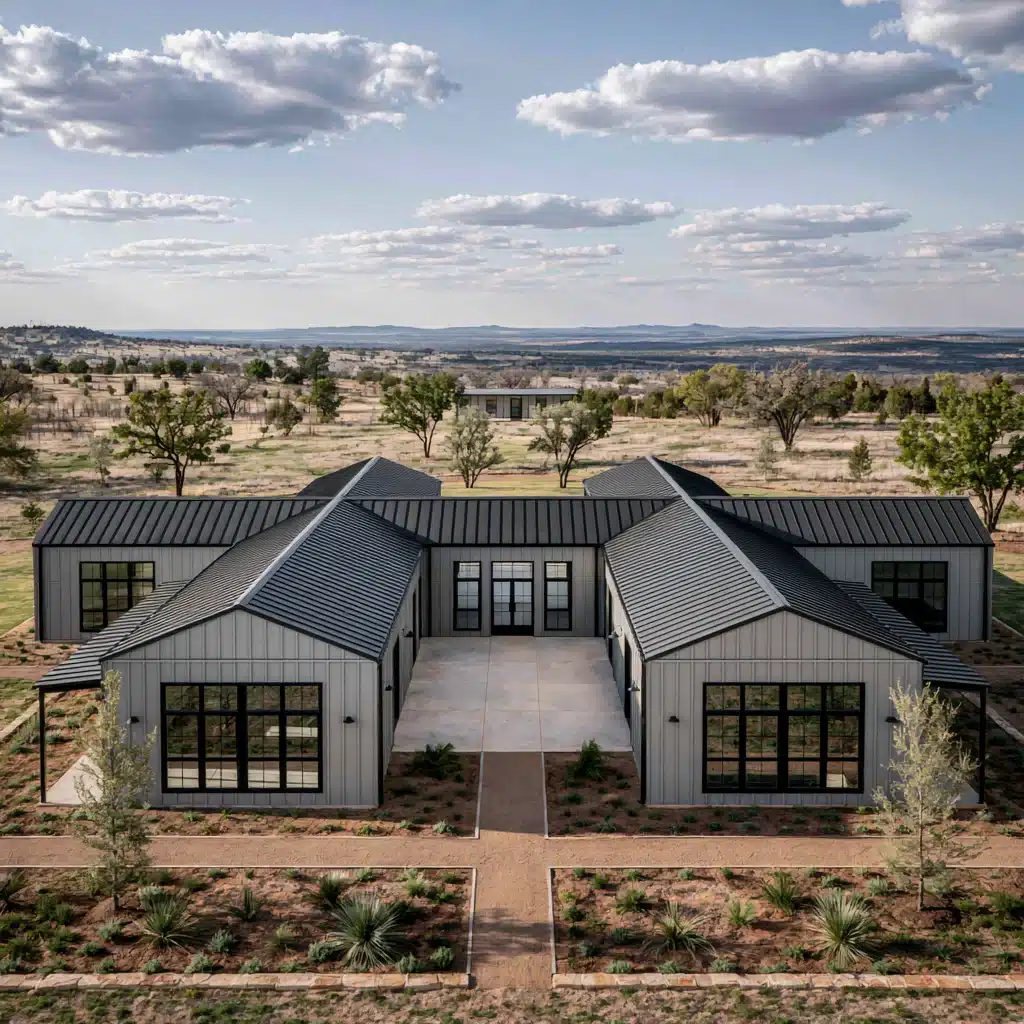

HB-40510 — Twin Garages And Four Foundation Options
The HB-40510 is single story with five bedrooms and four and a half bathrooms, and it does something none of the others do: twin two-car garages flanking the main entrance wings, so vehicle access sits at both ends rather than being concentrated at one. On a plan this wide that saves a genuinely long walk, and it suits households running two separate vehicle sets.
It is also the most flexible on siting. The designer offers four foundation options — concrete slab, full basement, daylight or walkout basement, and crawlspace — where most plans here offer one. On a sloping lot a walkout basement under a wing plan is a rare and useful combination. Distinct private and utility wings, dual covered porch corridors, a game and media room, a central living room and a kitchen with an island. $1,349.99 PDF; $1,599.99 printed.

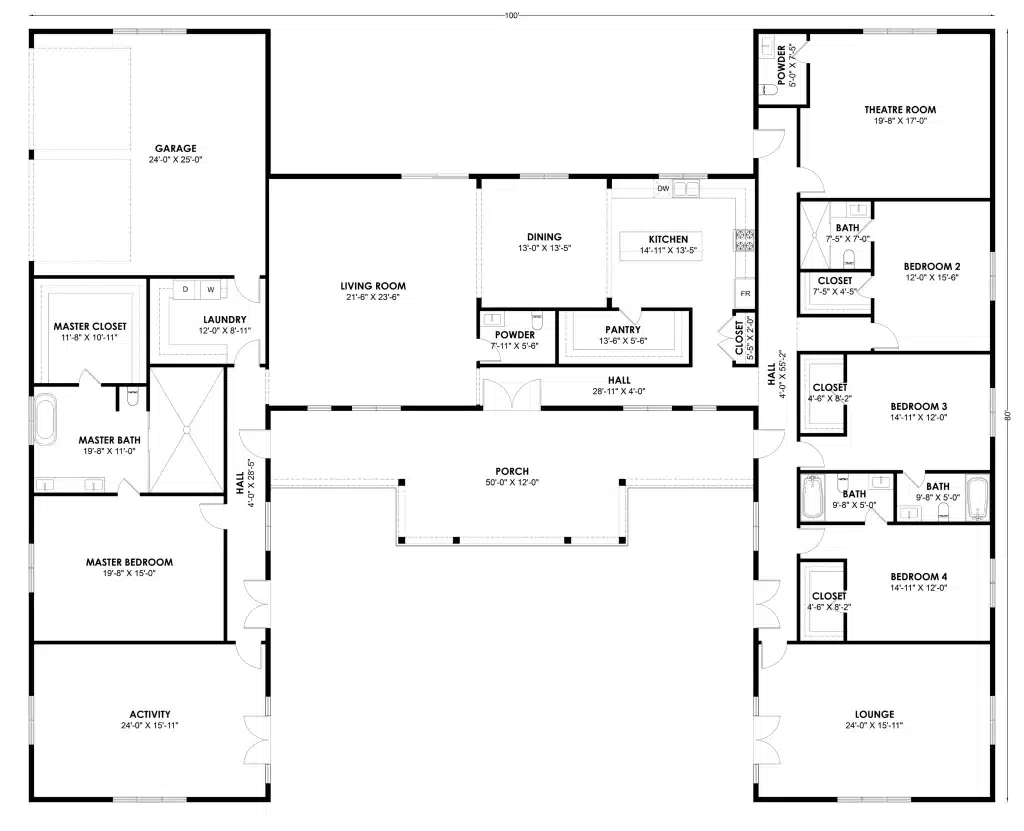

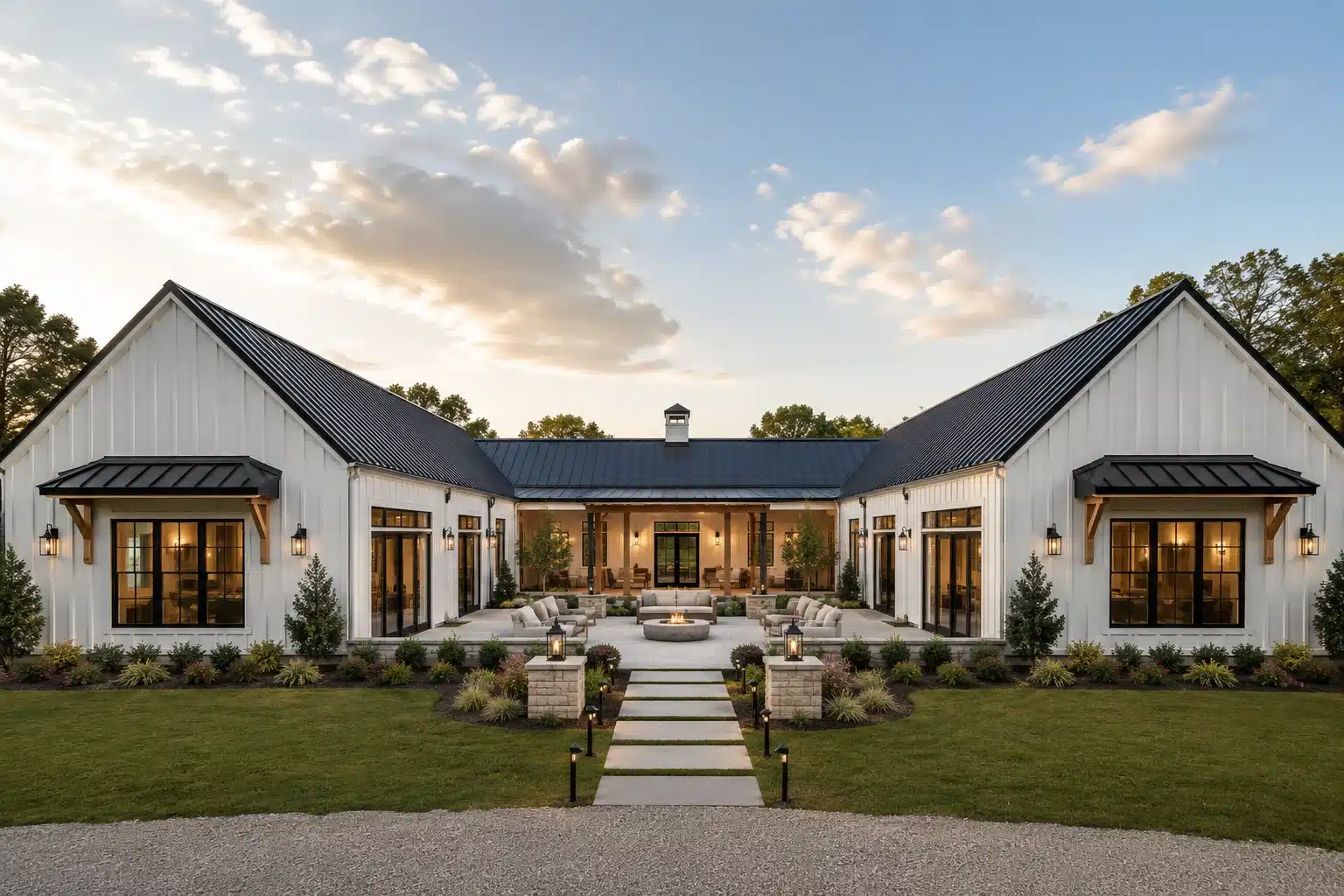

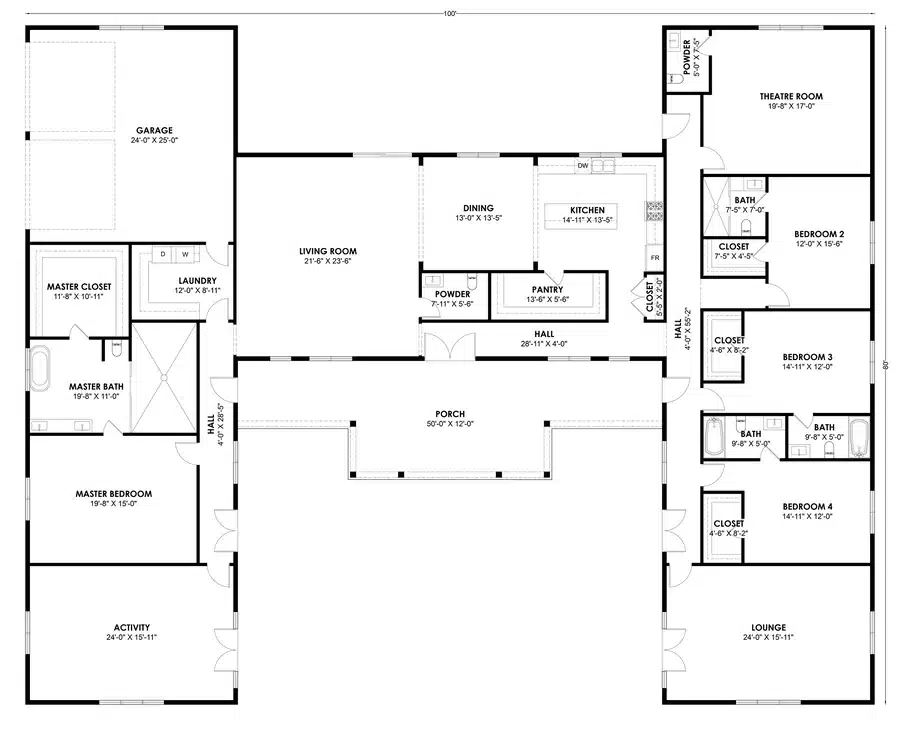

HB-40501 — The Entertainment Wing
The HB-40501 puts the primary suite in the left wing and integrates a two-car garage directly into the upper-left wing rather than hanging it off an end. Four bedrooms, three and a half bathrooms.
The room list is the reason to look: alongside the living room, formal dining and kitchen it carries an activity and gym room, a theatre room and a separate lounge. Those are exactly the rooms that ruin a rectangular house — noisy, used at odd hours, and best placed where nobody is sleeping. A wing plan is the natural home for them, and this plan is built around that idea. $1,349.99 PDF; $1,599.99 printed.

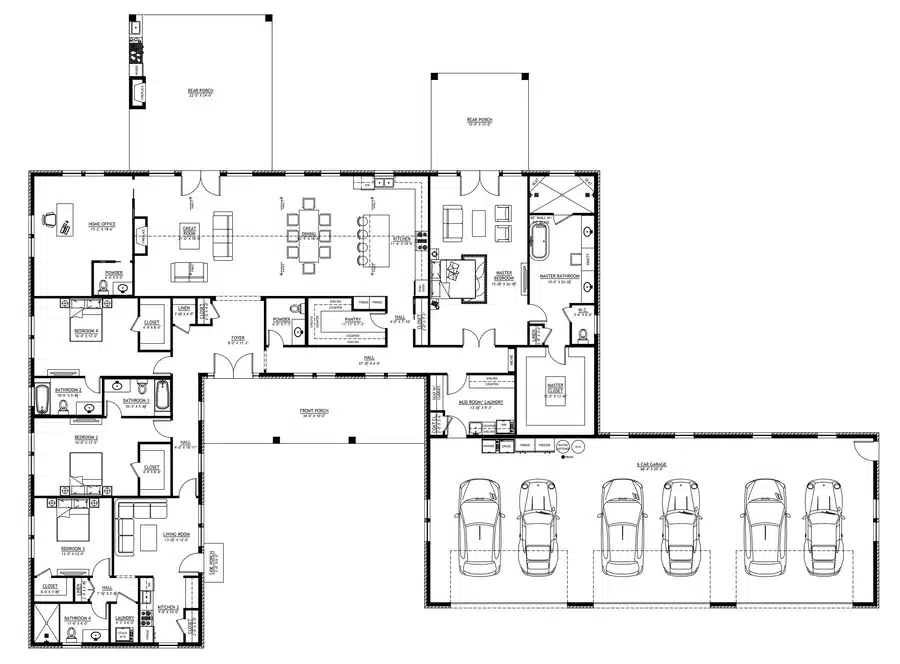

Harvest PL-71011-H — The Fully Documented One
The Harvest PL-71011-H is a single-story metal-shell plan with 4,162 heated square feet, four bedrooms, four full baths and two half baths, on a 131 by 73 foot 6 inch footprint. $1,499.99 as a PDF for a single build; $1,749.99 for five printed sets plus the PDF.
The wing separation on this plan is unusually complete, and it is the reason to look at it. The bedroom leg does not merely hold bedrooms. It holds bedroom 3 at 12 by 12 feet, a full bathroom, a second kitchen at 9 by 10 feet, a stacked laundry, a second living room at 13 by 12 feet, and its own side-porch entrance from outside. That is a complete one-bedroom apartment inside the house, reachable without passing through the main living space at all. Bedrooms 2 and 4, both 16 by 12 feet with walk-in closets and two more full bathrooms, sit in the same leg above it.
The connecting bar carries the shared living space and the primary suite. A vaulted great room at 21 by 18 feet 6 inches with a fireplace, dining at 22 feet 9 inches by 18 feet 6 inches, a kitchen at 11 feet 6 inches by 18 feet 6 inches with island seating for four, and a walk-in pantry at 11 feet 11 inches by 7 feet 3 inches holding two refrigerators. The primary bedroom is 15 by 26 feet with a 10 by 26 foot bathroom — freestanding tub, two vanities, a walk-in shower with two seats, a separate water closet — and a 12 by 13 foot 6 inch closet with its own island. A home office at 15 feet 2 inches by 18 feet 6 inches sits at the far end with a second fireplace.
The other leg is service and storage, and it is substantial. A mudroom and laundry at 13 by 9 feet 3 inches carrying washer, dryer, refrigerator, freezer, water softener and water heater, opening into a six-car garage measuring 68 feet 4 inches by 25 feet 4 inches. The published specification lists 1,890 square feet of garage without naming a bay count; the floor plan drawing labels it as six cars.
Outdoor space is 1,111 square feet across four porches. A 34 by 10 foot front porch sits in the notch between the wings — the sheltered pocket described above. A 22 by 24 foot rear porch carries an outdoor kitchen and an outdoor fireplace. A second rear porch runs 15 by 15 feet off the primary suite end, and a small side porch serves the apartment entrance.
On the shape itself, be precise. The heated footprint reads as a U — a long rear bar with two legs running forward and the front porch in the opening between them. The two rear porches project off the back of that bar, and with their roof structure included the silhouette closes into the H family. If you want a textbook H with the crossbar centered, read this plan’s roof plan before you commit.
The one number worth walking before you buy. The spine hallway is 37 feet 3 and a half inches long. From the apartment at the end of the bedroom leg to the primary suite at the far end of the bar is a genuine walk. That is the cost of the separation, and it is the trade every wing plan makes.
Ten-foot ceilings on the first floor, 25 feet 2 and a half inches overall, concrete slab, and a 10:12 main roof pitch — steep for a building this size, which is what gives the elevations their height.
Choosing Between These Five Plans
Strictest separation between sleeping and living: the HB-40507. The enclosed central foyer hub is the only link between the two wings, so nothing passes from one side to the other by accident.
A real courtyard rather than a porch: the HB-40502. The central outdoor patio with covered porch corridors is the only design here that treats the notch as a designed room.
A sloping lot, or a basement: the HB-40510, the only plan offering a full basement, a daylight or walkout basement, and a crawlspace alongside a slab.
Two households’ worth of vehicles: the HB-40510 again, with twin two-car garages at opposite ends — or the Harvest, whose six-car garage is the largest here by a wide margin.
Rooms that make noise: the HB-40501, built around a gym, a theatre and a separate lounge. The HB-40502 also carries a home theatre in a wing.
A self-contained suite for family: the Harvest. Its bedroom leg holds a second kitchen, a second living room, a full bathroom, a stacked laundry and a private exterior entrance — a complete apartment, not a guest room.
The most bedrooms: the HB-40507 and HB-40510, both at five.
Complete published specifications before you buy: the Harvest is the only one. If you need square footage and dimensions confirmed in writing to price a build or check a setback, either start there or ask the designer for the HB figures first.
What Does It Cost To Build An H-Shaped Barndominium?
Finished barndominiums generally run $65 to $160 per square foot. On the Harvest’s 4,162 heated square feet that is roughly $270,000 to $666,000, before land, site preparation, well, septic and utility connections.
Budget toward the upper half of that range for a wing plan rather than the lower. The per-square-foot ranges published for barndominiums are drawn largely from simple rectangular buildings. Everything in the trade-offs section above — the extra perimeter, the roof valleys, the corners, the longer mechanical runs, the second HVAC zone — lands in that number. A wing plan is not a rectangle with a bend in it; it is a more complicated building.
The unheated areas are not free either. The Harvest carries 1,890 square feet of garage and 1,111 of porch on top of the heated space, all of it needing slab, structure and roof. Price the shell against the whole footprint.
If you are pricing a building package rather than a stick build, kit shells run about $20 to $35 per square foot with another $10 to $15 per square foot to assemble. Ask specifically how the supplier prices a non-rectangular footprint, because the simple per-square-foot quote usually assumes a box.
Get county-level bids before you set a budget. Local labor markets move these numbers more than any design decision.
Is An H-Shaped Plan Right For Your Lot?
Measure your buildable width first. The Harvest is 131 feet wide. With side setbacks you want well over 160 feet of usable width, and that is before the driveway reaches a garage sitting at one end. This is rural acreage territory, and no modification makes a wing plan narrow.
Know which direction the opening faces. The notch between the wings is the best outdoor space on the plan, so it should face your view, your prevailing summer breeze, or away from the road — whichever matters most. Flipping a plan is a $275 modification and is usually the cheapest way to fix orientation. Decide before you pour.
Be honest about whether you need the separation. If nobody is going to occupy the second wing — no parents, no adult children, no long-stay guests, no rental — you are paying for perimeter you will not use. A rectangular plan of the same square footage will cost less to build and less to run every year afterward. Wing plans earn their premium when the wings have a job.
If a wing plan is more building than your lot or budget will take, our multi-generational barndominium plans cover the same separation problem in more compact forms. For other large-footprint designs see 50×100 barndominium floor plans, and for the same bedroom count in a simpler shape see 4-bedroom barndominium floor plans.
H-Shaped Barndominium Plans FAQ
What Is An H-Shaped House Plan?
Two parallel wings joined by a central connecting bar, so the roofline read from above resembles the letter H. The wings hold zones that benefit from separation — bedrooms in one, garage and utility in the other — while shared living space occupies the bar between them. H, U, T and L plans are all variations on the same wing-plan idea.
Are H-Shaped Barndominiums More Expensive To Build?
Yes, per square foot. A wing plan encloses the same floor area with substantially more exterior wall than a rectangle, and adds roof valleys, extra corners, longer plumbing and duct runs, and usually a second HVAC zone. Expect to sit in the upper half of the $65 to $160 per square foot range rather than the lower, and expect higher heating and cooling costs permanently.
What Is The Advantage Of An H Shaped Home?
Separation. Bedrooms, living space and vehicles occupy different legs of the building, so traffic and noise do not cross. Nearly every room gets exterior wall on two or three sides for light and cross-ventilation. And the notch between the wings creates sheltered outdoor space that a rectangular house cannot produce.
How Much Land Do You Need For An H-Shaped Barndominium?
More width than depth. The Harvest is 131 feet wide by 73 feet 6 inches deep, so with setbacks you are looking for well over 160 feet of usable frontage plus driveway access to a garage at one end. Check width against your setbacks before you look at anything else on the plan.
Can An H-Shaped Plan Have A Separate In-Law Suite?
That is one of the main reasons people choose them. A wing with its own exterior entrance, kitchen, bathroom and laundry functions as an independent residence under the same roof. The Harvest does exactly this — its bedroom leg contains a second kitchen, a second living room, a full bath, a stacked laundry and its own side-porch entrance.
Can These Plans Be Modified?
Yes. Minor modifications are $400 for up to three changes that do not alter room sizes or overall dimensions; major modifications are $1,000 for up to five changes or anything that does. Flipping the plan is $275 and is the usual way to fix which direction the courtyard opening faces.
