Barndominium Duplex Plans

A barndominium duplex puts two private homes under one metal roof — two front doors, two kitchens, two sets of utilities, one building and one foundation. These barndominium duplex floor plans suit three situations: an owner who lives in one unit and rents the other, a family housing aging parents or adult children with real separation, and an investor who wants two doors on a single rural parcel. Duplex barndominium house plans are far rarer than single-family designs, so the choice below is deliberately small and every plan on it is a genuine two-unit design.

The Three Ways To Join Two Units

Nearly every duplex plan you will find resolves the same problem in one of three ways, and the choice drives cost, privacy and how the building sits on your lot more than square footage does.

A shared wall is the cheapest and most compact. One continuous structure, one roofline, one slab, and the two units meet at a party wall. You get the smallest footprint and the lowest cost per square foot. You also get the least acoustic separation, which is why the wall assembly matters so much — see the cost section below.

A shared central space puts something useful between the two units — a recreation hall, a utility core, a shared laundry and mechanical room. The units stay separate but the building gains a common room that neither household has to give up floor area for. This suits multi-generational families better than tenants, because it assumes the two households actually want a shared space.

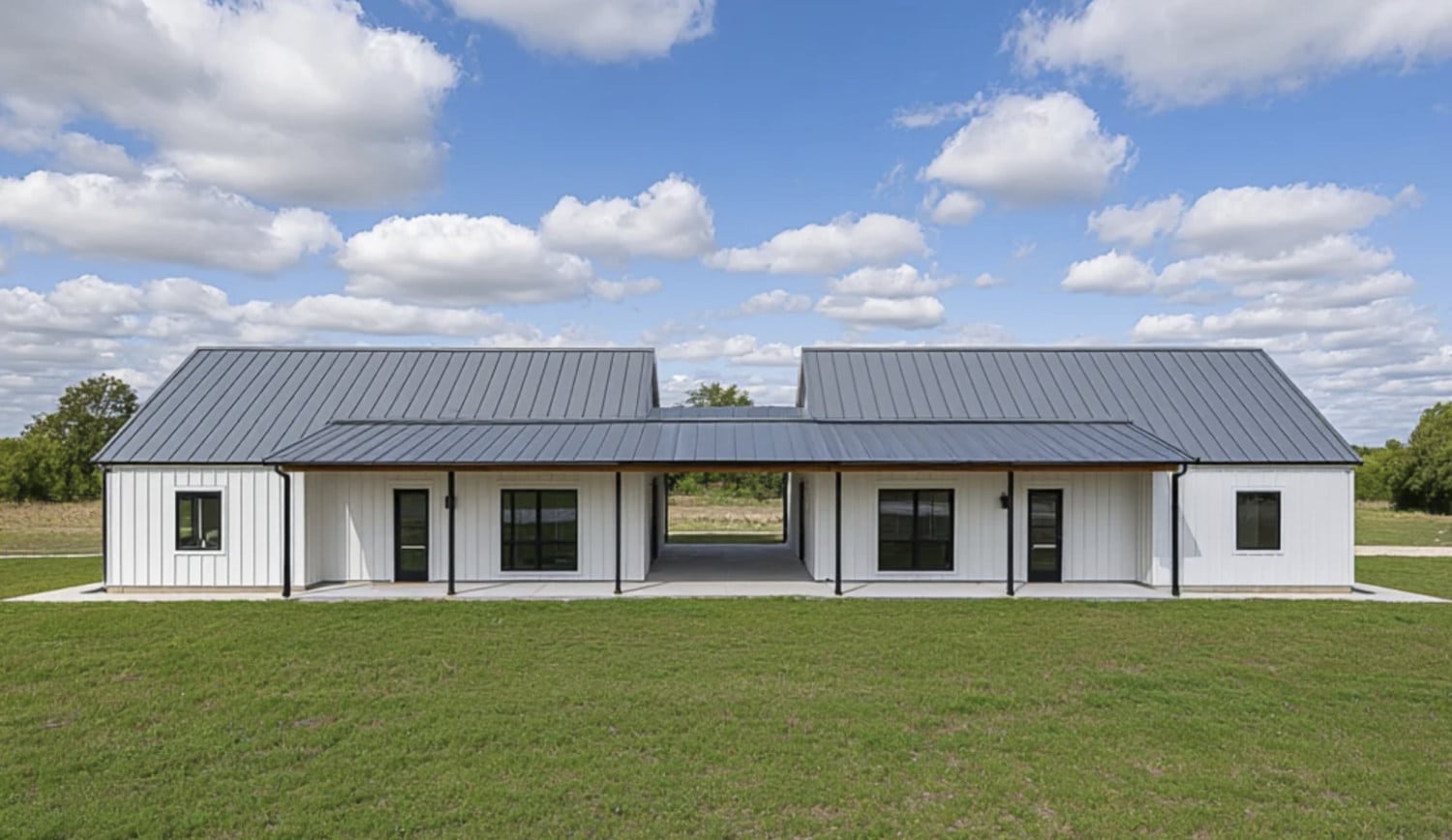

A breezeway separates the units completely and joins them under a continuous roof. Acoustically the two homes are independent — there is outside air between them. It is the most privacy you can get while still building one structure, and it costs the most, because you are roofing space that is neither heated nor enclosed.

If you are renting a unit to a stranger, prioritize separation. If you are housing family, a shared central space is usually the better value.

Small Duplex House Plans

The PL-61101

The PL-61101 Duplex is the shared-wall version and the most compact plan here. Two mirrored units of 750 heated square feet each, 1,500 square feet total, each with one bedroom and one bathroom.

• Heated: 1,500 sq ft total — 750 per unit
• Total under roof: 2,400 sq ft, including 900 sq ft of porches
• Bedrooms / baths: 1 and 1 per unit — 2 and 2 total
• Footprint: 96 ft wide by 50 ft deep — 48 ft per unit
• Stories: 1 · Ceilings: 10 ft · Roof pitch: 6:12
• Construction: stick-frame on a concrete slab · Garage: none
• Porches: front and rear on each unit
• Price: $849.99 PDF, single build license

Two things to weigh. The 900 square feet of porch across a 2,400 square foot roof is a lot of covered outdoor space for a plan this size, and it is the reason each 750 square foot unit does not feel like an apartment. Against that, one bedroom per unit narrows your tenant pool sharply — this is a plan for singles, couples, a parent, or short-term rental, not for families.

At 96 feet wide it also needs a wide lot. Depth is only 50 feet, so it suits a shallow parcel far better than most barndominium plans, but you need frontage.

The AP-20005 Missy — Two Units Around A Shared Hall

The AP-20005 Missy is the shared-central-space version, and the only plan here with a garage.

• Heated: 2,656 sq ft
• Total under roof: 3,871 sq ft, including an 835 sq ft garage and 380 sq ft of screened porches
• Bedrooms / baths: 4 and 2 total — two bedrooms and one bath per side
• Footprint: 78 ft wide by 65 ft deep · Stories: 1
• Shared: central recreation hall carrying utility, laundry and mechanical
• Private: independent screened side porches, direct garage access from each side
• Price: $849.99 PDF, single build license

The two-bedroom-per-side layout is what separates this from the PL-61101 — each half is a real small house rather than a studio with a bedroom. The shared recreation hall is the trade-off: it is genuinely useful for a family compound and genuinely awkward for a rental, because a tenant and an owner sharing a laundry and mechanical room is a recurring friction point rather than a one-time design decision.

One bath per two-bedroom unit is tight. If both sides will run at capacity, price a second bath into the plan modification before you buy.

The BRZ-30045 — Two Homes Joined By A Breezeway

The BRZ-30045 is the most private of the three and the closest thing here to two separate houses.

• Layout: two mirror-image units joined by an 11 ft by 30 ft covered breezeway
• Bedrooms / baths: 4 and 4 total — two bedrooms and two baths per unit
• Per unit: master suite, guest bedroom, two baths, own laundry, open living and dining, full kitchen, walk-in pantry
• Porch: shared 58 ft by 10 ft covered porch spanning the front of both homes
• Price: $1,349.99 PDF, single build license

The designer does not publish heated square footage or overall dimensions for this plan. We are not going to estimate them from the porch length, because the porch may not span the breezeway. If the numbers matter to your budget or your lot — and on a duplex they always do — ask the designer for them before you buy. That is a reasonable question and they will answer it.

What the plan does publish is the thing that makes it worth the extra $500: two baths and a private laundry in each unit, plus outside air between the two homes. Every acoustic complaint a duplex landlord ever hears comes from the party wall, and this plan does not have one.

What Does It Cost To Build A Barndominium Duplex?

Finished barndominiums generally run $65 to $160 per square foot. Against the heated areas here that gives:

• PL-61101 at 1,500 sq ft — roughly $97,500 to $240,000
• AP-20005 Missy at 2,656 sq ft — roughly $172,640 to $424,960
• BRZ-30045 — not calculable until the designer publishes a heated figure

Those exclude land, site preparation, well, septic and utility connections. If you are pricing a shell package instead, kits run about $20 to $35 per square foot with another $10 to $15 per square foot to assemble.

Expect a duplex to land higher per square foot than a single-family plan of the same size, and budget for it deliberately. You are buying two kitchens, two HVAC systems, two water heaters and two sets of appliances into the same footprint. Most jurisdictions following the IRC require a fire-rated separation between dwelling units — commonly a one-hour assembly, sometimes reducible where the building is sprinklered — so the party wall on a shared-wall plan is a rated assembly, not a stud wall. Confirm the requirement with your local building department before you price it, because it varies.

Utilities are the other line people underestimate. Two units means either two meters or one meter with sub-metering, and a septic system sized for two households rather than one. Your county health department sets the sizing, and on a rural parcel that number can move your site cost by five figures. Get local bids before you commit to a budget.

Zoning, Utilities And Financing — Check These First

A duplex plan is the easy part. The constraints below decide whether you can build one at all, and they are worth clearing before you spend $849.99 on a plan set.

Zoning. Your parcel has to permit two dwelling units. A great many rural and residential parcels are zoned single-family only, and a barndominium does not change that. Some counties allow a second unit as an accessory dwelling rather than a true duplex, which carries its own size caps and owner-occupancy rules. Call the county planning office with your parcel number before anything else.

Deed restrictions and covenants. Separate from zoning, and they routinely prohibit multi-family use even where the county permits it. Read the covenants on the deed.

Septic and water. Two households generate roughly twice the flow. Systems are sized by bedroom count, so a four-bedroom duplex is sized like a four-bedroom house even though the occupants are unrelated. Confirm with the health department that your soil will take it.

Financing. A two-unit building is still residential property under most conventional and government-backed loan programs, which treat one-to-four-unit buildings differently from commercial multi-family. Owner-occupied duplexes in particular can be financed on terms closer to a primary residence than to an investment property, and some programs let projected rent from the second unit count toward qualifying. Terms change and vary by lender — talk to a lender who has financed a barndominium before, because construction lending on a metal-shell build is its own conversation.

Choosing Between These Three Plans

Renting to a tenant: the BRZ-30045. No party wall, no shared mechanical room, two baths and private laundry per unit. It costs the most and it is the only one of the three with no shared interior space at all.

Housing family: the AP-20005 Missy. The shared recreation hall is an asset when the two households are related and a liability when they are not.

Smallest footprint, lowest cost, or a short-term rental: the PL-61101. One bedroom per unit limits who you can rent to, but at 750 square feet a side it is the cheapest way to get two doors on one slab.

Narrow or shallow lot: the PL-61101 at 50 feet deep, provided you have 96 feet of width. The Missy needs 78 by 65.

You need a garage: only the Missy has one, at 835 square feet with access from both sides.

If a duplex turns out not to be permitted on your parcel, the usual alternative is a single building with two private wings and one shared entrance — legally one dwelling, practically two. Those are on our multi-generational barndominium plans page. For a single compact unit see 1-bedroom barndominium plans and 2-bedroom barndominium floor plans.
